china ip67 switch waterproof 110 volt push button momentary ring led red green 35mm
▶ Product Description:

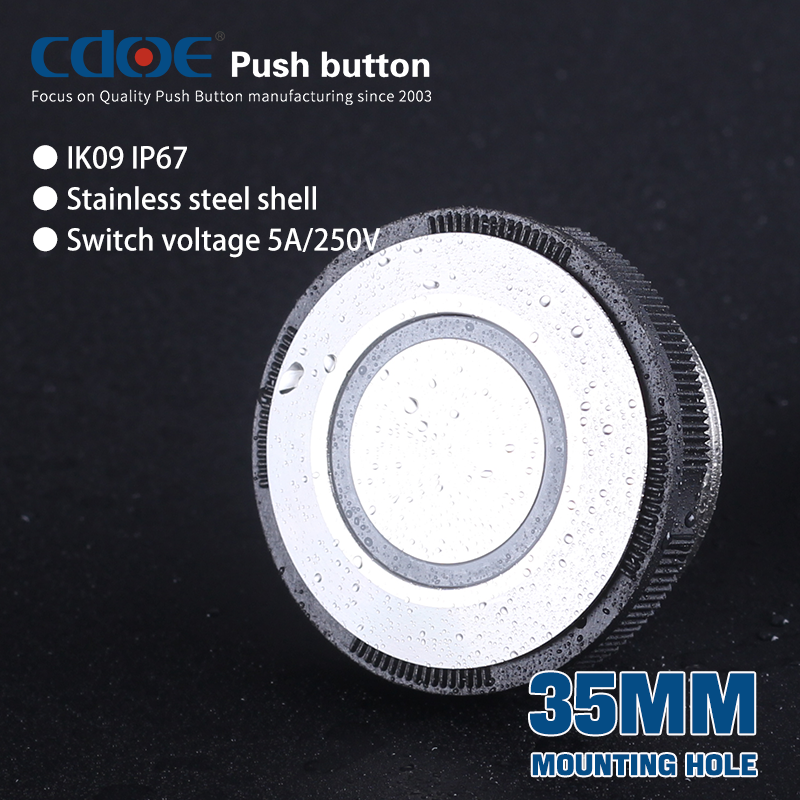

Introducing our IP67 Waterproof Push Button Switch with a 35mm mounting hole. This switch is designed to provide reliable performance in demanding environments where water and dust resistance is essential. With a rating of 5A/220V, it is suitable for a wide range of applications requiring a robust and durable switch.
The IP67 rating ensures that this switch is completely protected against the ingress of dust and can withstand being submerged in water up to a certain depth. This makes it ideal for outdoor and industrial applications where exposure to moisture, dust, and debris is common.
Operating at 110 volts, this switch is specifically designed for use in 110V electrical systems, providing a convenient solution for various applications. Whether you need to control lighting, machinery, or other electrical circuits, this switch is built to handle the voltage requirements.
Featuring a momentary push button design, this switch offers reliable and responsive operation. When the button is pressed, the circuit is closed, allowing the flow of electrical current. Upon release, the circuit opens, interrupting the current. This functionality is particularly useful in applications where precise control or quick activation is required.

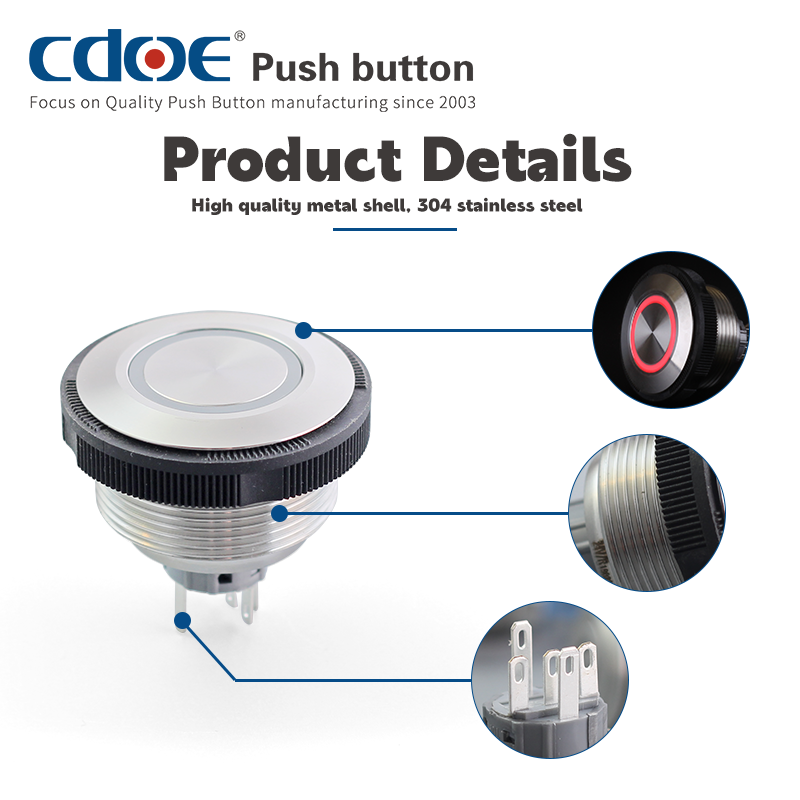

Equipped with a ring LED illuminated head, this switch offers enhanced visibility and indication. The LED light provides a clear and easily noticeable signal, making it suitable for use in dimly lit environments or situations where visual feedback is necessary.
Our IP67 Waterproof Push Button Switch is proudly manufactured in China, adhering to high-quality standards and utilizing metal buttons for durability and longevity. The pin terminal contact ensures a secure and reliable connection, reducing the risk of accidental disconnection or poor conductivity.
Whether you're in need of a waterproof switch for outdoor installations, industrial machinery, or any other application where water and dust resistance is crucial, our IP67 Waterproof Push Button Switch delivers the reliability and performance you can count on.
Choose our IP67 Waterproof Push Button Switch for its robust construction, reliable operation, and versatile functionality. Experience the durability and convenience of a switch designed to withstand challenging environments while providing excellent electrical control.
▶ Product Model Specification:

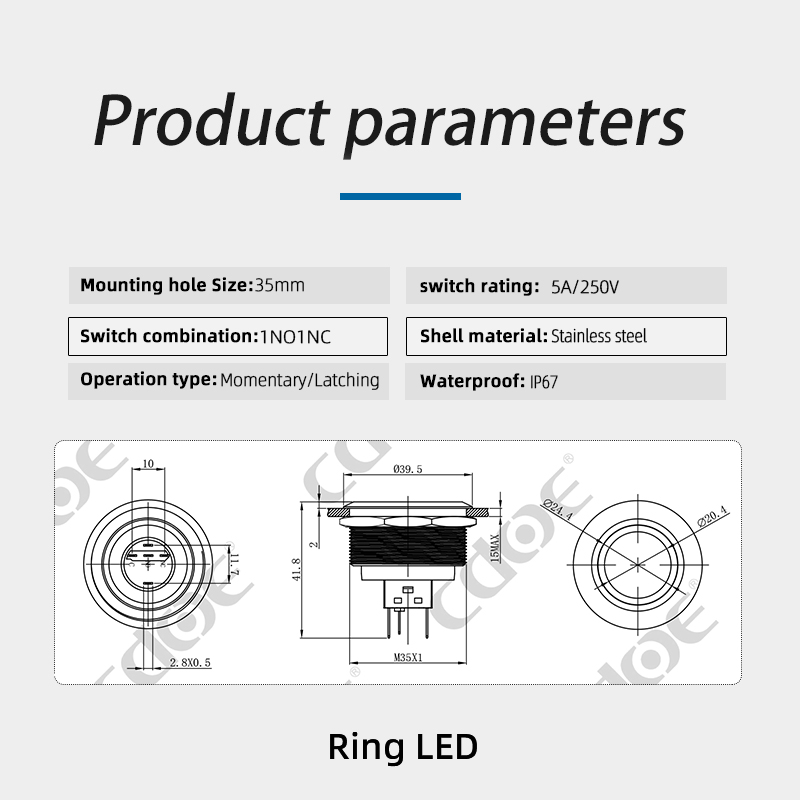

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ35 Series IP67 Switch Waterproof |
|
| Product model : | HBDS1-AGQ35F-□E/J/S |
| Mounting hole size : | 35MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Stainless steel; Switch button surface:Stainless steel; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50,000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶ Problems encountered by buyers:
Q: Does the switch come with a protective cover?
A: “The mounting hole is 35mm, and the current protective cover size only meets the button switch between 19mm-25mm.”
Q:What is the voltage range for the 110V Momentary Push Button Switch?
A: “The switching voltage range of each type is different, and the general voltage of the button switch is between 220 volts.”
Q:Is there a thin 30mm type button？?
A:“Yes, the 30mm button switch series is the same as this button. For specific details, please contact the official email for purchase.”
