19mm industrial key switch keey type two position metal lock waterproof

Short Description:

Product Model: HBDS1-AGQ19F-Y/21/J/S

Mounting Hole Size: 19MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: New energy machines/yachts


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

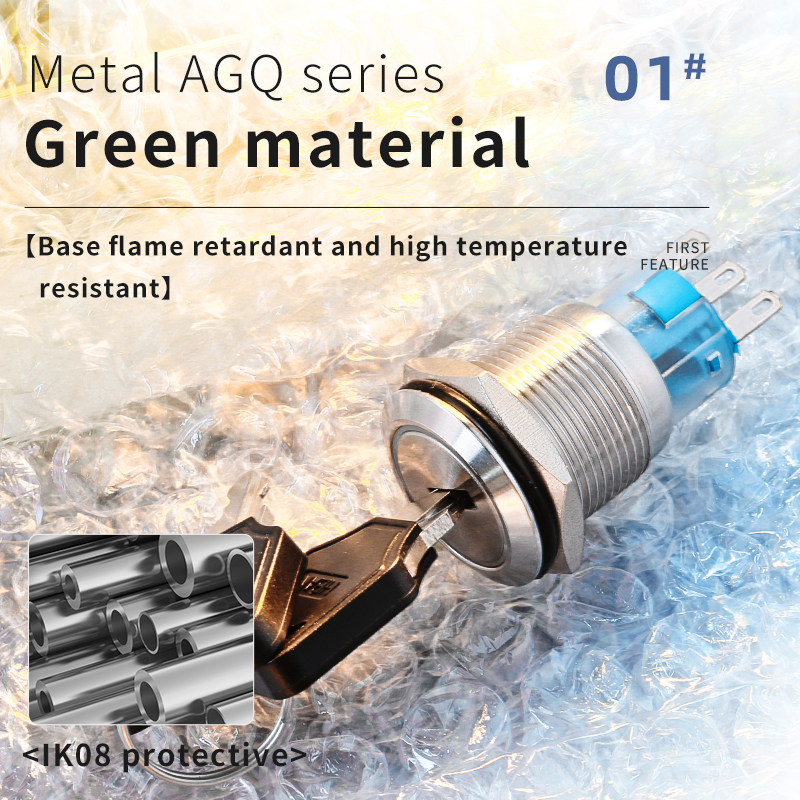

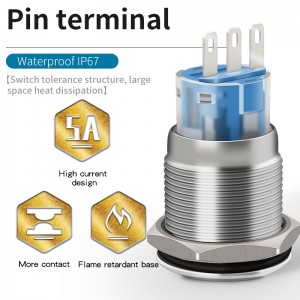

Metal stainless steel 19mm mounting holes two position rotate Key switch pin terminal can support production arrow with lights.5a current and voltage, dedicated connectors available for purchase, simple and fast wiring.

▶Product Model Specification:

HBDS1-AGQ-Product-Model-specification1

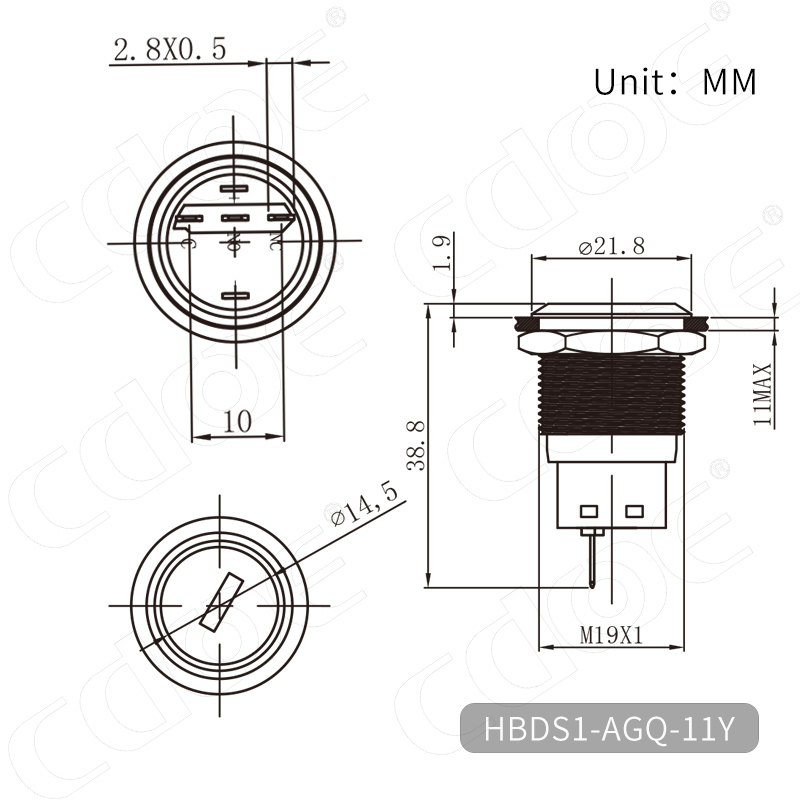

Product Size:

19mm metal key switch wiring diagram
HBDS1-AGQ16F-11E-Product size 2

Technical Parameter:

Metal shell 2 position industrial key switch

Product model:

HBDS1-AGQ19F-11Y/21/J/S

Mounting hole size :

19mm

Switch value:

Ith:5A,UI:250V

Operation type:

Latching

Contact configuration:

1NO1NC

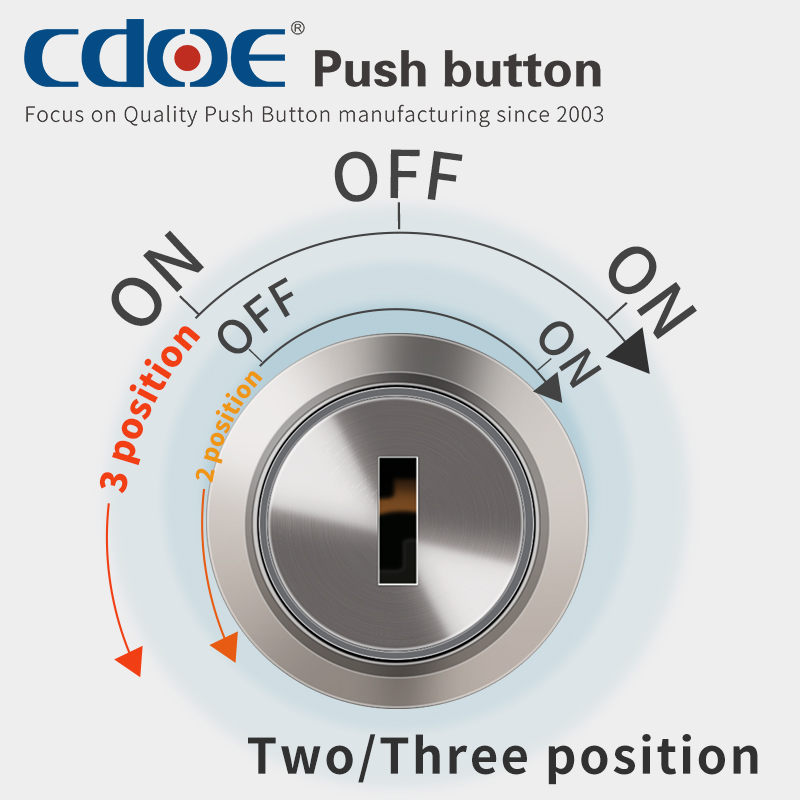

Action stroke:

2 gears,90°;

3 gears,45°left and right,a total of about 90°

Appearance material:

Head:stainless steel;

Case:stainless steel;

Contact:Silver alloy;

Terminal type:

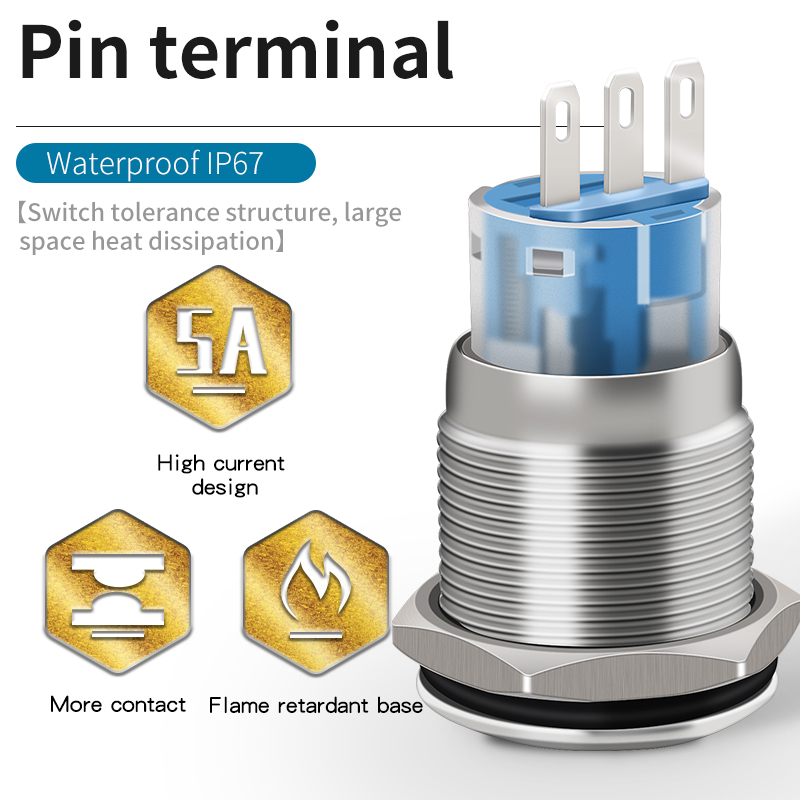

Pin terminal

Working environment temperature:

-25℃~+65℃;

Connection form:

With wire/Supporting connector

Lamp bead parameters

Protection grade:

IP65

Contact resistance:

≤50mΩ

Insulation resistance:

≥100MΩ

Electrical resistance:

AC2500V, 1min, no flicker and breakdown;

Life

Electrical part: Operate 50,000 times under rated load without any abnormality

Mechanical part: No abnormal movement for 500,000 times



Problems Encountered By Buyers:

Q: Are their keys all the same? Suppose I need to buy two key switches, are the keys the same?

A: “Yes dear. The key for our keyed switches are all the same.”

Q: Can this be locked in the on position, and the key removed?

A: “No sorry, our key switch can't achieve such a function at present. We have plans to develop in the future. We will notify you of new features in time.”

Q: Are there any other mounting hole sizes for the key switch?

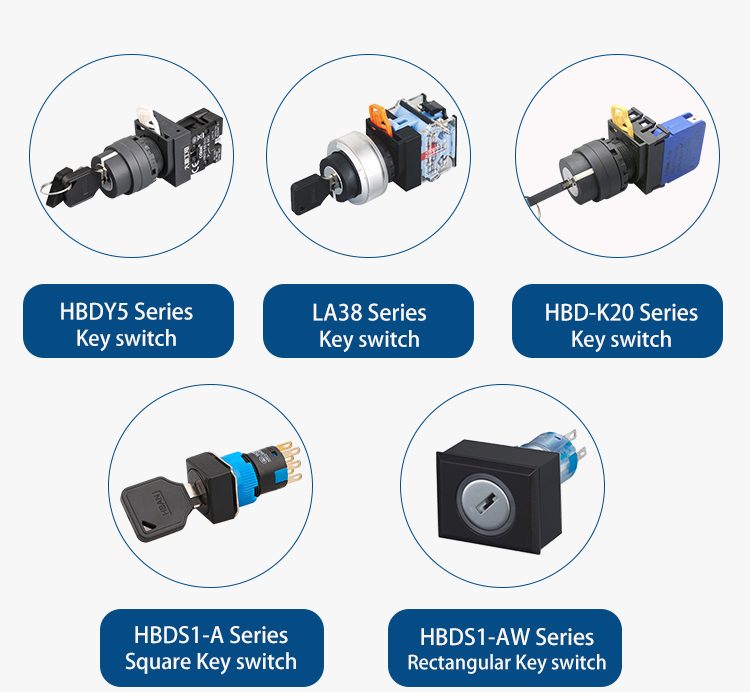

A: “Yes we have other types of key switches.Example: 22mm mounting holes HBDY5 series/la38 series/HBD-K20A series,16mm plastic shell HBDS1-A series square head switch and 22mm plastic shell HBDS1-AW series rectangle head.”
