22mm pushbutton switch ip67 spdt Industrial medical equipment start control press button

Short Description:

Product Model: HBDS1-AGQ22F-E(Z)/J/T+HBD-T1

Mounting Hole Size: 22MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary,Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Send email to us

Product Detail

Why choose us？

Product Tags

▶ Product Description:

HBDS1-AGQ22F-E (Z) / J / T + HBD-T1 series black-plated push button switches, 22mm mounting aperture, aluminum alloy black-plated shell, calm and professional appearance.

This switch supports two functions: latching and momentary, and can be flexibly applied to different control needs.

The electrical rating is 5A/250V, and two contact configurations are available: 1NO1NC and 2NO2NC. It is suitable for a variety of scenarios such as industrial control, automotive electronics, and medical equipment.

With IP67 protection level, it is effectively waterproof and dustproof. At the same time, it has the characteristics of corrosion resistance, vibration resistance, and high life. The mechanical life is up to 1 million times, the electrical life is 50,000 times, and the operating temperature range is -25℃~+65℃.

Optional lighting function, the button head can emit multiple colors of light such as red, green, blue, white, and yellow, and supports voltages such as 6V, 12V, and 220V.

The product has passed many international certifications such as UL, CE, CCC, TUV, etc., and its quality is reliable. It adopts pin terminals and can be matched with quick connectors for easy wiring.

If you need a black-plated push button switch with professional appearance, diverse functions and reliable performance, suitable for industrial control, automotive electronics, medical equipment and other fields, the HBDS1-AGQ22F-E (Z) / J / T + HBD-T1 series is your ideal choice. Its operating force is 0.6Nm and provides clear pressing feedback. Welcome to contact us for more information.

▶ Product Model Specification:

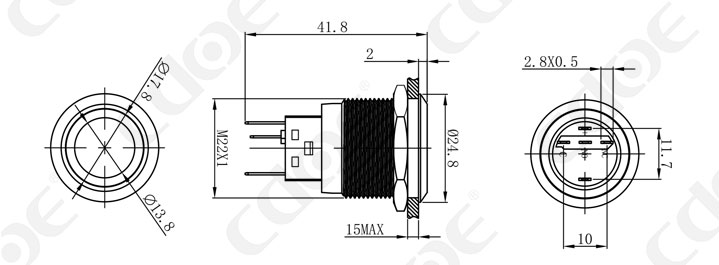

▶Product Size:

▶Technical Parameter:

HBDS1-AGQ22F-E(Z)/J/T Series 22mm pushbutton switch
Product model :	HBDS1-AGQ22F-E(Z)/J/T
Mounting hole size :	22MM
Switch value:	Ith:5A,UI:250V
Operation type:	Momentary,Latching
Contact configuration:	1NO1NC,2NO2NC
Appearance material:	Head:Aluminum alloy black plating Switch button surface:Aluminum alloy black plating Pedestal: PBT; Contact:Silver alloy;
Terminal type:	Pin terminal(With connector)
Lamp bead parameters
Led voltage :	6V/12V/24V/36V/110V/220V
Led color:	Red/Green/Yellow/Orange/Blue/White
Led life:	50000 hours
Protection grade:	IP67
