22mm Momentary Push Button Switch Waterproof Illuminated 1NO1NC 10A Customized by Leading Chinese Manufacturer

Short Description:

Product Model: HBDS1-D22F-11ET(Z)/J/PC/H

Mounting Hole Size: 22MM

Switch Value: Ith: 10A, UI: 6-48V,220V

Operation Type: Momentary, Latching

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Industrial machinery, machine tool equipment, rocking car, control box, power engine, new energy machine, electromagnetic starter,


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Discover the 22mm Momentary Push Button Switch, a high-quality and versatile solution for your projects. With a 22mm mounting hole, this switch is designed to easily integrate into various applications, such as industrial control panels, automotive dashboards, elevators, and home automation systems. Rated for 5A and 250V, this switch ensures reliable performance and durability for your needs.
Featuring a 1NO1NC contact type, this push button switch offers a unique transparent and luminous plastic design that adds a touch of style to any project. The switch is made from environmentally friendly engineering plastic, ensuring durability and sustainability.Designed with an IP65 waterproof rating, this 22mm push button switch is suitable for use in diverse environments, providing dependable performance even in challenging conditions such as outdoor installations or areas exposed to moisture.Choose our customized 22mm push button switch, crafted by a leading Chinese manufacturer and dealer, for a reliable and stylish switching solution that can cater to a wide range of applications and industries.

Product Model Specification:

HBDS1-D-Product-Model-specification4

Product Size:

10a 22mm dot led push button Dimensions

Technical Parameter:

HBDS1-D22F Nylon series China customized waterproof 22mm push button

Product model : HBDS1-D22F-□ET(Z)/J/PC
Mounting hole size : 22MM
Switch value: Ith:5A(10A),UI:250V(6-48V)
Operation type: Momentary,Latching
Contact configuration: 1NO1NC
Appearance material: Head: PC;
Switch button surface: PC;
Base: Plastic PA66;
Contact: Silver alloy;

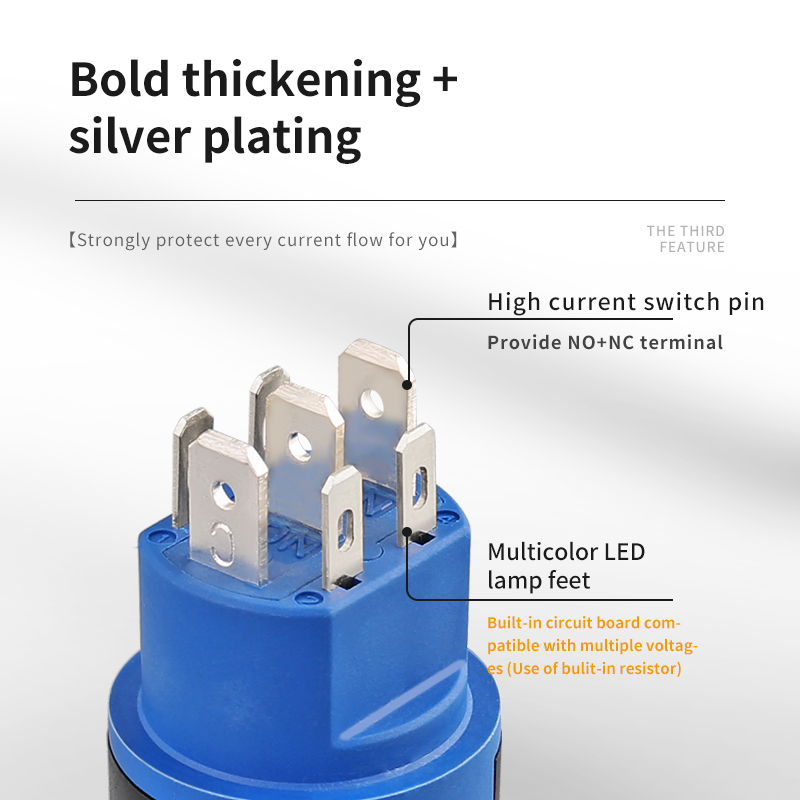

Terminal type: Pin terminal
Connection form: Supporting connector/Welding wire;
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V;(Other voltages can be customized)
Rated current: ≤20mA

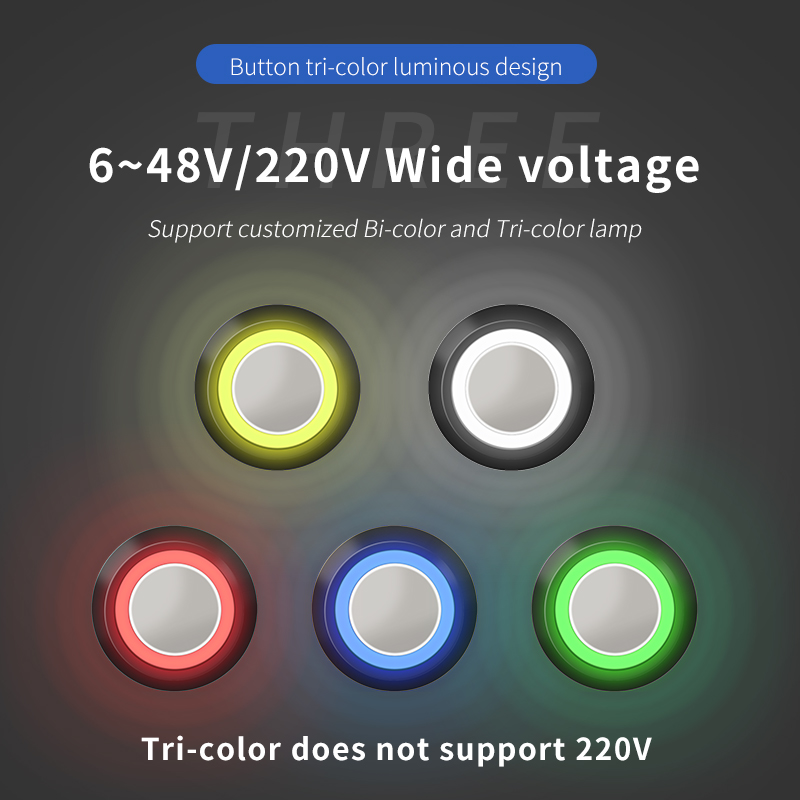

Led color: Red/Green/Yellow/Orange/Blue/White/RG/RB/RGB
Led life: 50000 hours
Protection grade: IP67
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown;

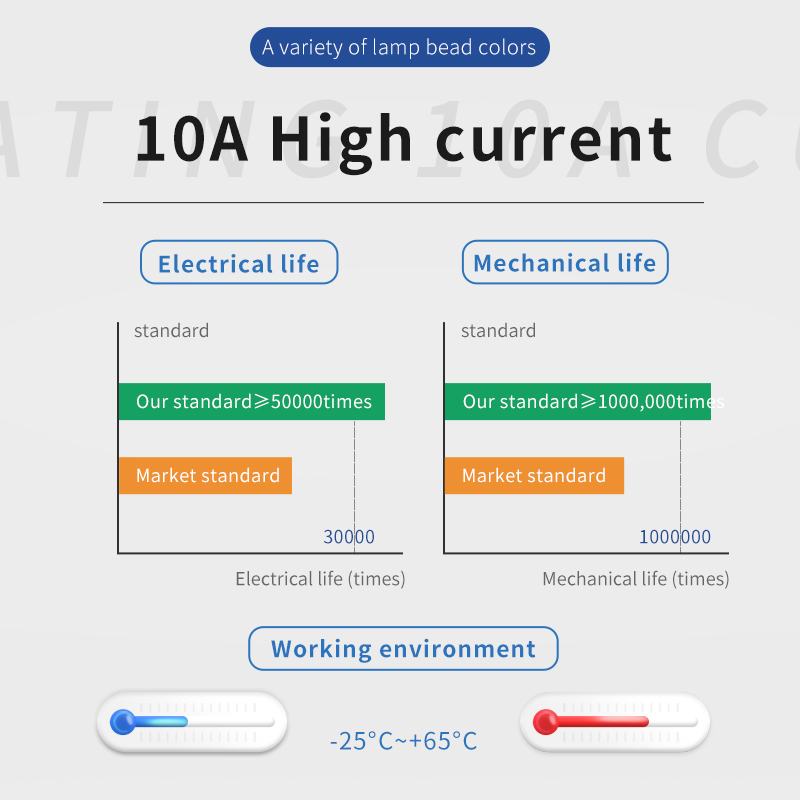

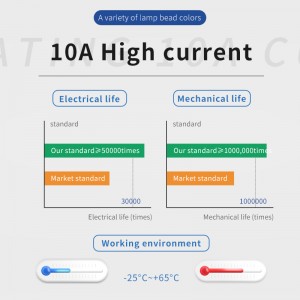

Life
Mechanical Life: 0.5 million times for latching,One million times for momentary

Problems Encountered By Buyers:

Q: Can the switch be used in safety-critical applications or emergency stop situations?

A:  “For safety and emergency use, we recommend that you use our Red Mushroom Emergency Stop Push Button Switch, the large head facilitates a quick press in an emergency to stop power to the circuit.”

Q: Is the switch resistant to dust, dirt, or other contaminants, in addition to its waterproof rating?

A: “All our push-button switches are waterproof and dust-proof. The waterproof rating of this push-button switch is ip65.”

Q:Can the transparent and luminous plastic be replaced or customized with different materials, such as metal or opaque plastic?

A: “This type of push button switch is available in metal, black plastic and white plastic. You can choose according to your needs.”
