20a double head push button plastic red green color momentary switches 1no1nc 12v twin head pushbutton

▶Product Description:

HBD-K20W-11(D)S/RG series double-headed pushbuttons, with integrated multi-color indicators and momentary operation mechanism.

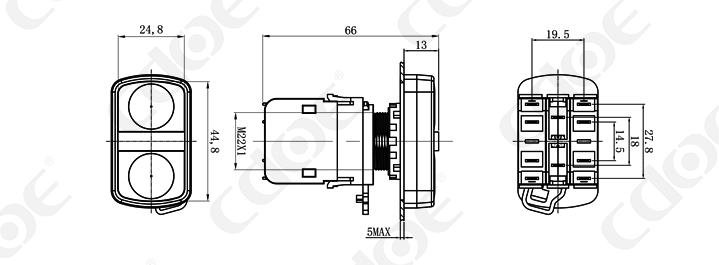

This HBD-K20W-11(D)S/RG series double-headed pushbutton provides you with intuitive and efficient machine control and status feedback. It is designed for a standard 22mm mounting aperture to ensure seamless integration with a variety of equipment. The button head is in classic red and green colors, and an independent indicator light is integrated in between, which can emit multiple colors such as red, green, yellow, orange, blue, and white, clearly indicating the operating status of the equipment.

The internal contact configuration can be selected as 1 normally open and 1 normally closed (1NO1NC) or 2 normally open and 2 normally closed (2NO2NC), with a rating of up to Ith:20A, UI:400V, ensuring reliable electrical connection. The button head and key surface are made of high-quality plastic, which is lightweight and durable. Connection is made through pin terminal (Pin terminal), which is very easy to install and maintain.

The built-in LED lamp beads provide a variety of color options and support multiple voltages such as 6V, 12V, 24V, 36V, 110V, 220V, etc. to meet the needs of different electrical systems. The LED lamp bead life is up to 50,000 hours, ensuring long-term stable operation.

This product has an IP40 protection level, which can effectively prevent the entry of solid foreign objects larger than 1mm (such as tools or thick wires), ensuring reliability in daily industrial environments.
