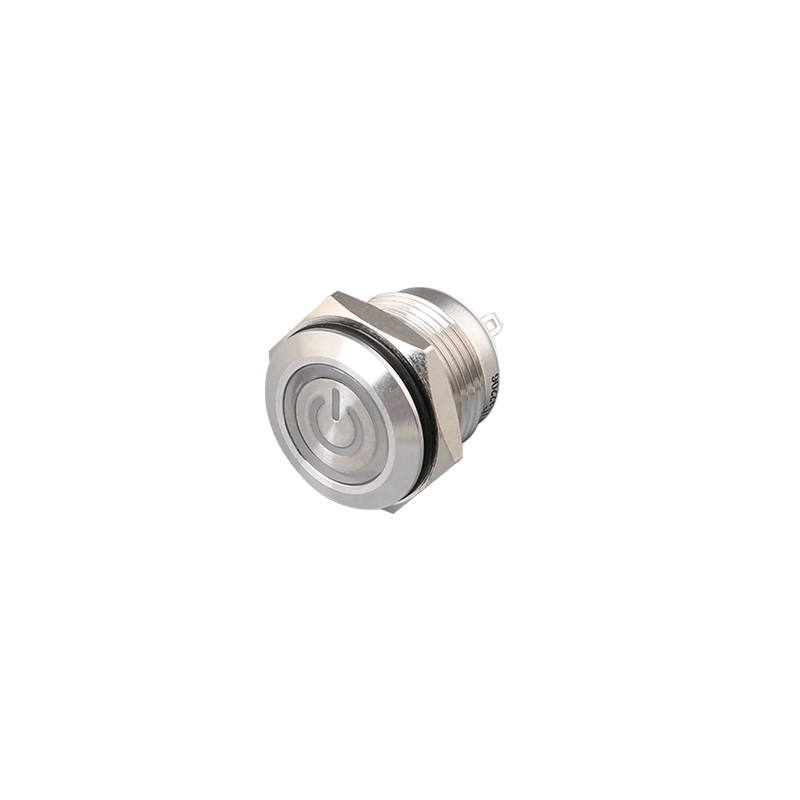

Waterproof momentary 16mm led Switch push button 1no power symbol
▶Product Description:
This 16mm, 19mm, and 22mm pushbutton switch is a reliable and durable solution for any application. It is IP65 waterproof power symbol head, meaning it is dustproof and able to handle powerful jets of water.The switch has one normally open contact, meaning it will remain open until the switch is triggered.It also has two points of terminal contact, allowing for an easy and secure connection.This switch also features red, green, and blue LED illuminated options, allowing for customization and easy visibility in any lighting condition. All of these features make this switch an ideal choice for any application requiring a reliable and durable switch.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDGQ16F-10 Series pin terminal Durable button 16mm switch |
|
| Product model : | HBDGQ16F-10ET/J/S |
| Mounting hole size : | 16mm |
| Head type: | Flat head ring and power symbol |
| Switch value: | Ith: 3A,UI: 250V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 0.5mm |
| Connection form: | Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: What type of trigger does the switch use?
A:“The switch is triggered by a mechanical action, such as pressing or pushing the button.”
Q: How does the switch operate?
A: “The switch is a momentary pushbutton, meaning it will switch between on and off with a single press.”
Q: How many operations can the button handle before it needs to be replaced?
A: “The switch is designed for a long life cycle, and can typically handle up to 50,000 operations before it needs to be replaced.”
