12v push button switch ring led illuminated 220v latching with long style
▶Product Description:
Illuminate Your Control with the 19mm LED Push Button Switch
Experience the power and versatility of our illuminated pushbutton switch. With a mounting hole of 19mm, this switch offers easy installation and integration into a variety of applications. Whether you need a momentary switch for quick operations or an on-off switch for convenient control, our LED push button switch is the perfect solution.
Key Features:
LED Illumination: The ring LED design provides vibrant and clear illumination in various colors, including yellow, red, green, and blue. This allows for easy identification and visual indication of the switch status.
Durable and Waterproof: With an IP65 waterproof rating, this switch is designed to withstand dust and water ingress, making it suitable for both indoor and outdoor environments. Its robust construction ensures long-lasting performance even in challenging conditions.
Flexible Contact Configuration: The 1NO1NC contact type offers flexibility in wiring configurations, providing options for different control applications. The pin terminal connection simplifies the installation process, allowing for quick and hassle-free setup.
Wide Voltage Range: Rated at 5A/220V, this switch can handle various electrical loads, making it suitable for a range of low to medium voltage applications.
Applications:
Our 19mm LED push button switch is widely used in many industries and applications, including:
1. Industrial automation
2. Electrical control systems
3. Consumer electronics
4. Automotive
5. Marine and offshore
6. Building and construction
7. And more
Enhance Your Control:
Choose the 19mm LED push button switch to enhance your control and ensure efficient operation. Its illuminated design, waterproof construction, and flexible wiring options make it an ideal choice for a wide range of applications. Trust in its reliability and performance to meet your control needs.
Experience the difference of our LED push button switch. Unlock the power of precise control and visual indication with our reliable and versatile solution. Upgrade your control panel or equipment with our 19mm LED push button switch and enjoy enhanced functionality and ease of use.

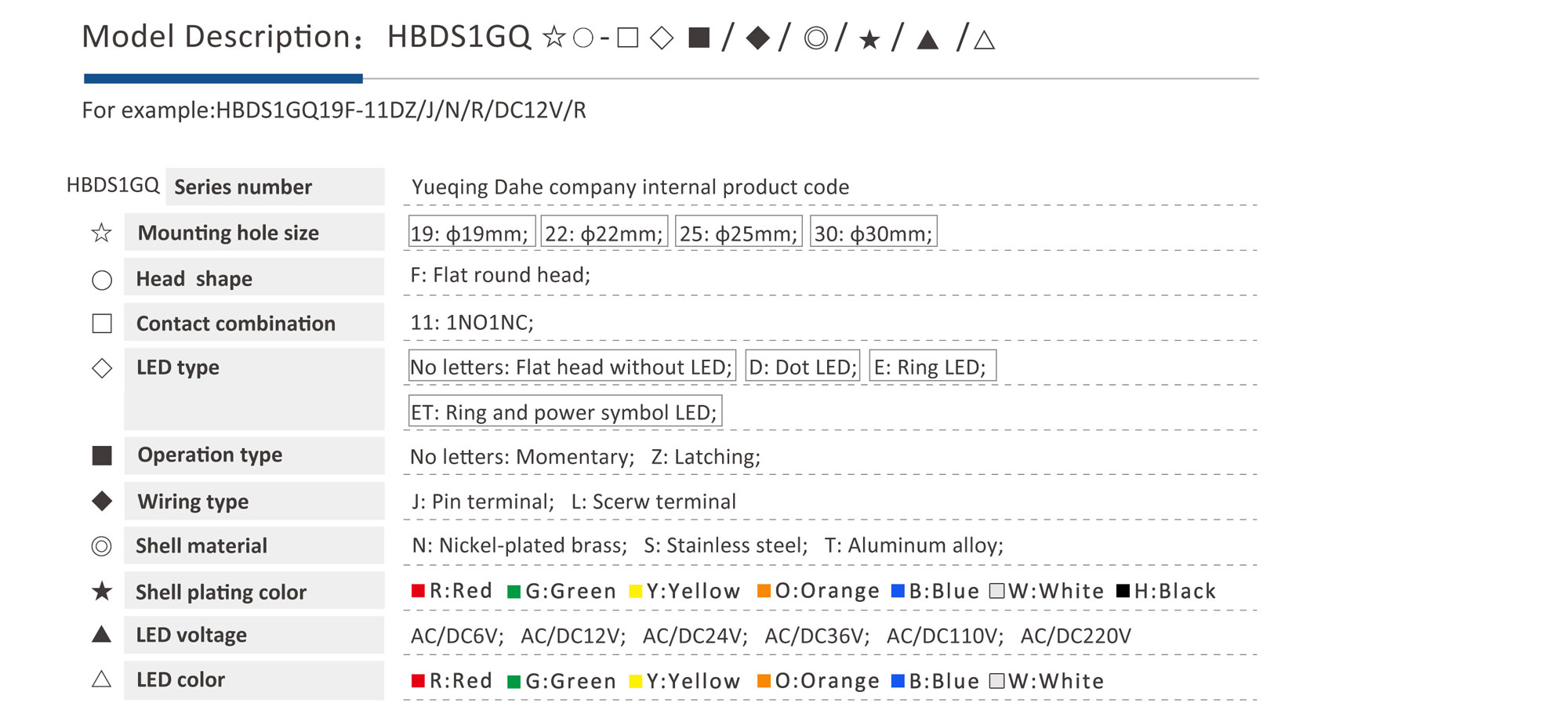

▶Product Model Specification:

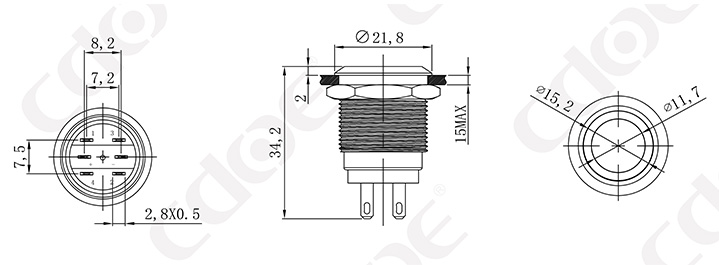

▶Product Size:
▶Technical Parameter:
HBDS1GQ Series led push button switch 19mm screw terminal |
|
Product model : | HBDS1GQ19F-□E(Z)/L/N(S) |
Mounting hole size : | 19mm |
Switch value: | Ith:5A,UI:250V |
Operation type: | Momentary,Latching |
Contact configuration: | 1NO1NC |
Appearance material: | Head:Stainless steel/Nickel plated brass; Switch button surface:Stainless steel/Nickel plated brass; Pedestal:PBT Contact:Silver alloy; |
Terminal type: | Screw terminal |
Connection form: | With wire |
Lamp bead parameters | |
Rated voltage : | 6V/12V/24V/36V/110V/220V; |
Led color: | Red/Green/Yellow/Orange/Blue/White |
Protection grade: | IP65 |
▶Problems Encountered By Buyers:
Q:Can I choose the color without LED type?
A:"Yes, button switch type can choose to buy flat head without light button."
Q:Does the switch come with a warranty?
A:"Quality problem warranty one year."
Q:Can I use this switch latching type to apply to the device?
A:"There is no problem at all, the button switch has a latching type, you can choose to buy according to your needs."
