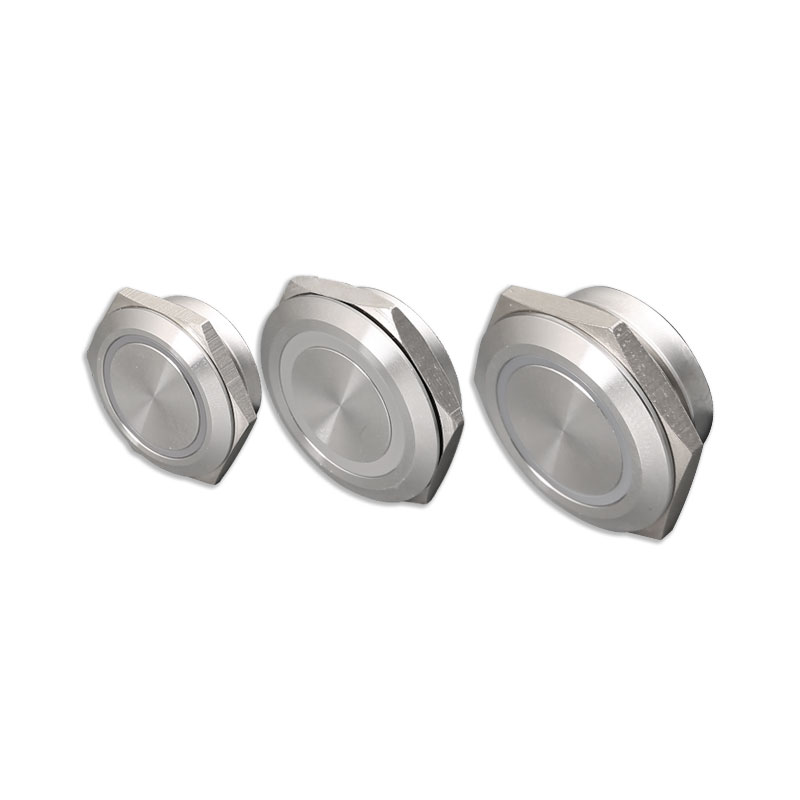

IP67 waterproof push button metal switches 22mm 25mm 30mm ring led stainless steel NO Ultra-thin shell

▶Product Description:

Introducing the exceptionally sleek and space-saving HBDGQ22(25/30)SF-10WE/J/S series of waterproof push button metal switches, now featuring an ultra-thin shell design that offers significant advantages in applications with limited space. These momentary switches, available with versatile mounting hole sizes of 22mm, 25mm, and 30mm, are engineered to provide robust performance without compromising on compactness.

The integrated ring illumination not only provides a clear visual indication of the switch status with its vibrant Red, Green, Yellow, Orange, Blue, and White LED options but also does so within the confines of its streamlined profile. These long-lasting LEDs boast an impressive lifespan of 50,000 hours and operate efficiently within a 12V-24V range at a low current of ≤20mA.

Constructed with premium materials, these waterproof push button metal switches maintain the same high standards of durability despite their reduced depth. The stainless steel head and button surface offer excellent resistance to corrosion and wear, while the PBT pedestal ensures structural integrity. The ultra-thin shell design allows for seamless integration into even the most space-constrained panels and enclosures, making it an ideal choice where traditional, bulkier switches would be impractical.

Functionally, the HBDGQ22(25/30)SF-10WE/J/S series operates as a reliable momentary switch with a 1NO contact configuration and a responsive 0.5mm movement stroke. It maintains an Ith rating of 50mA and a UI rating of DC12V, suitable for various low-voltage control systems.

Despite its waterproof push button metal construction and ultra-thin profile, this series achieves an impressive IP67 protection grade, ensuring complete dust-tightness and protection against temporary water immersion. This makes it perfectly suited for applications exposed to challenging environmental conditions where space is at a premium.

Electrically, the switches exhibit a low contact resistance of ≤100mΩ for efficient signal transmission and a high insulation resistance of ≥100MΩ for enhanced safety.

In conclusion, the HBDGQ22(25/30)SF-10WE/J/S series with its ultra-thin shell design offers a compelling solution for applications demanding a waterproof push button metal switch without the bulk. Its compact form factor, combined with its robust construction, vibrant ring illumination, and reliable performance, makes it an ideal choice for space-sensitive environments where durability and functionality cannot be compromised. Experience the advantage of a powerful switch in a remarkably slender package.

Ready to optimize your design with this space-saving and durable switch? Contact us today for a quote or to discuss your specific requirements. Our team is ready to assist you in finding the ideal solution for your application.
