metal push button switch 16mm high head ring illuminated 5 pin stainless steel spdt UL Certification
▶Product Description:
This high head metal push button switch 16mm is made of high quality stainless steel, durable, with excellent waterproof, dustproof performance (protection class IP67). The metal push button switch 16mm is designed with a high head structure for easy operation, and the ring LED aperture supports a variety of colors (red, green, blue, yellow, white) to provide a clear visual effect for the status indication. Its contact sensitive, mechanical life can reach more than 100,000 times, support a variety of voltage range (DC 6V/12V/24V or AC 220V). In addition, the metal push button switch 16mm has passed CE, RoHS, UL, TUV and other international certification, in line with safety and environmental standards, reliable performance, widely used in industrial control equipment, automotive electronics, access control system and household appliances and other fields, is an ideal choice of high performance and high quality.
▶Product Model Specification:

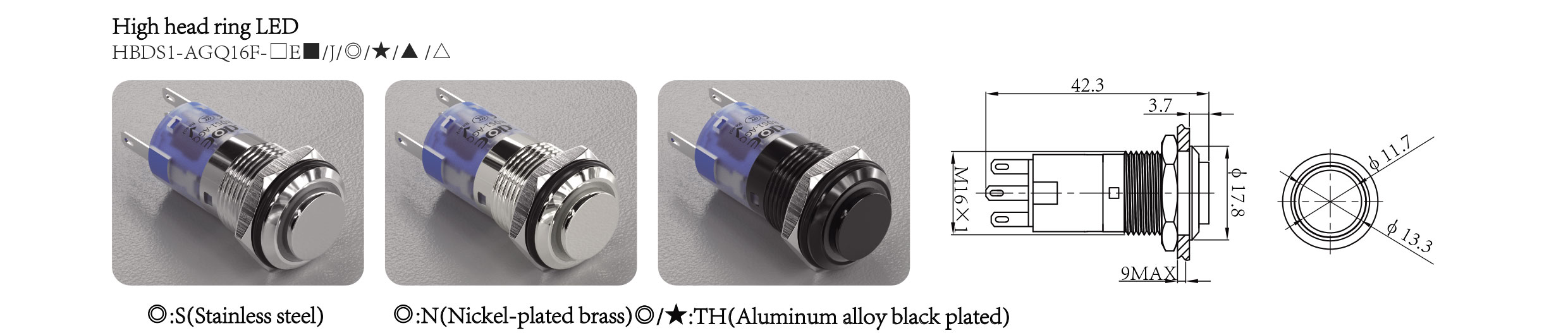

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ16H Series metal push button switch 16mm |
|
| Product model : | HBDS1-AGQ16H-□E(Z)/J/S |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: stainless steel; Switch button surface: stainless steel; Pedestal: PBT; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
