button emergency stop 16mm spdt plastic red color head 1no1nc switches ip65 for New energy equipment
▶Product Description:
When it comes to safety, there's no room for compromise. Our 16mm Button Emergency Stop is your go-to device for safeguarding your equipment and operations.
Small Size, Big Benefits:
Don't let its size fool you. This button packs a punch with its array of features:
Precise Fit:
Designed to snugly fit a 16mm mounting hole, this emergency stop button is a versatile choice, suitable for various applications.
Handle Heavy Loads:
With a robust 5A/250V rating, this button takes on high currents without breaking a sweat, ensuring reliable performance when you need it most.
Weather the Elements:
Its IP65 waterproof rating means it's ready for the great outdoors. This button thrives in challenging conditions, ensuring safety even in adverse environments.
Customizable Safety:
Choose between 1NO1NC and 2NO2NC contact types to match your precise safety needs, giving you control over your equipment.
Stay Connected:
The pin terminal design ensures a secure electrical connection, reducing risks, and making your equipment safer to use.
Red Alert:
The red stop mushroom head is a universal symbol for emergency stops. It's easy to spot and even easier to use when you need to act quickly.
Always Ready:
With a latching operation, this button stays engaged until you manually reset it, guaranteeing your control and your safety.
Applications Across Industries:
Elevators:
Ensure the safety of elevator passengers with our 16mm Button Emergency Stop. In emergencies, every second counts, and this reliable button can swiftly halt the elevator's operation, preventing accidents.
Medical Machines:
Precise and safe operation is crucial in medical equipment. Our emergency stop button ensures quick response times, protecting patients and medical professionals in critical situations.
Food Equipment:
In the food industry, hygiene and safety are paramount. Our IP65 waterproof button can be easily cleaned and helps prevent equipment mishaps, ensuring your production process remains smooth and clean.
Your safety is non-negotiable. The 16mm Button Emergency Stop is compact but powerful, making it an indispensable addition to your control panel.
Discover our comprehensive range of safety solutions, including emergency stop buttons, push buttons, and more, all engineered to meet the highest safety standards.
Don't take chances with safety—opt for quality. Choose the 16mm Button Emergency Stop for all your safety and control requirements.

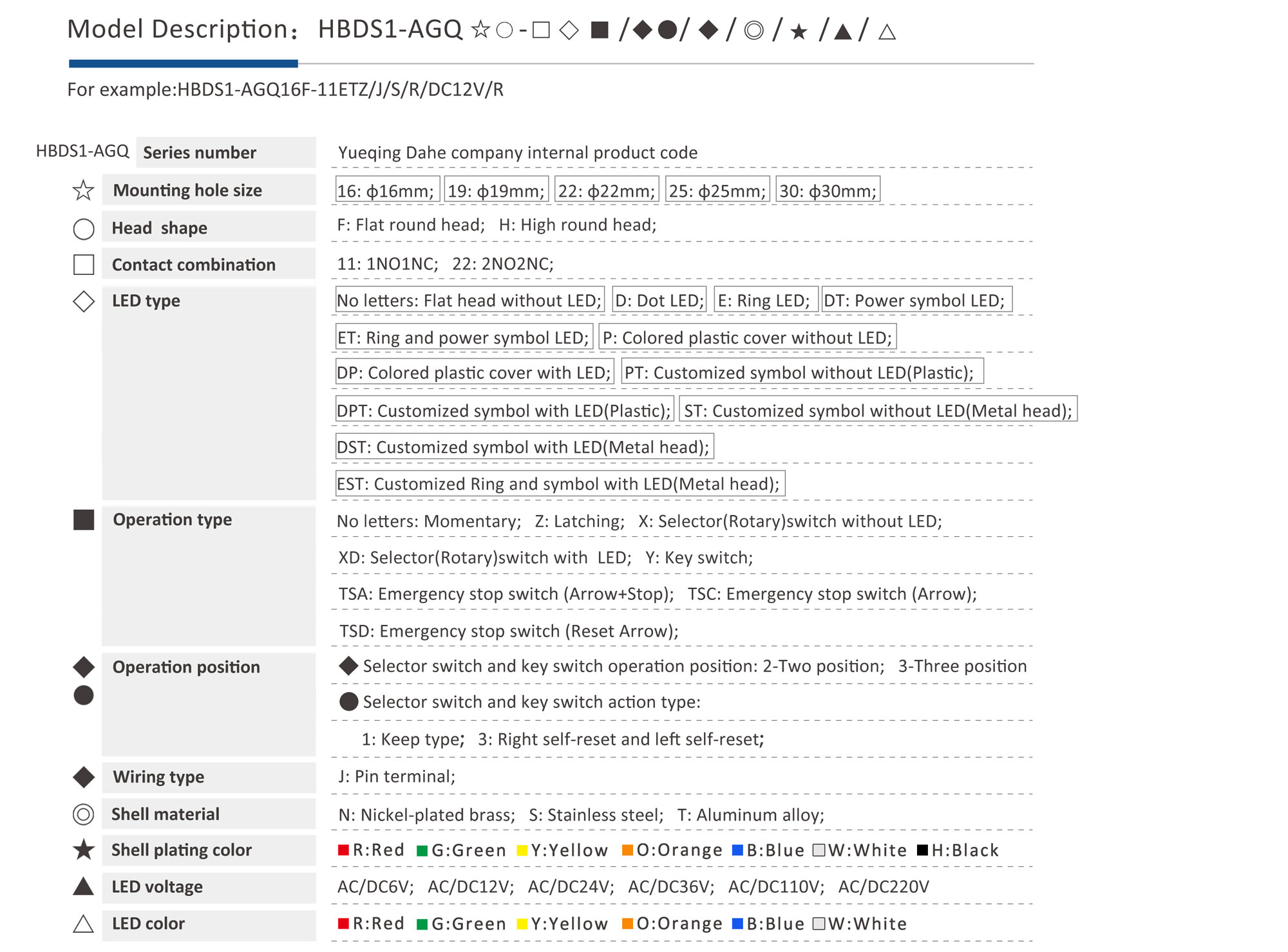

▶Product Model Specification:

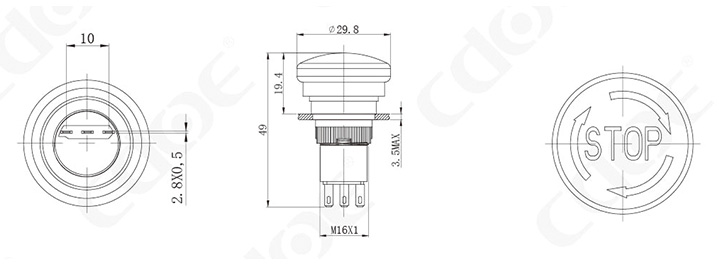

▶Product Size:
▶Technical Parameter:
HBDS1-AGQ16F-11TS/J/PC/R button emergency stop 16mm |
|
Product model : | HBDS1-AGQ16F-11TS/J/PC/R |
Mounting hole size : | 16mm |
Switch value: | Ith:5A,UI:250V |
Operation type: | Latching |
Contact configuration: | 1NO1NC,2NO2NC |
Appearance material: | Head:PC; Switch button surface:PC; Pedestal:PBT Contact:Silver alloy; |
Terminal type: | Pin terminal |
Connection form: | Supporting connector/Welding wire |
Protection grade: | IP65 |
