◎ What is a high current push button switch?

What is a high current switch?

High current switches have very low contact resistance. They are used for power supply, radio frequency, capacitor discharge, pulse, transmission and tap selection. They are used for low and high voltage power loads or with multiple capacitor banks for isolated no-load selection, transmission or grounding.


How much current is called large current?

There are many common types of switches, and their rated currents are also different. Common 63 types are 1A, 3A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A; 100 type has 63A, 80A, 100A.In the types of small metal buttons, the rated current value is generally 5A, so metal switches larger than 5A can be called high current switches.


Among the main button types of Yueqing Dahe Electric Co., Ltd., most of the products such as AGQ series, S1GQ series, GQ22-11 series are 5A current, GQ12-10, metal signal lights and other small buttons are rated at 50mA or 20mA small current. The newly developed D22C is a 10A high current pin metal switch series with 22mm mounting holes and 1no1nc. D16C and D19C are metal 10amp pushbutton switch series with 16mm, 19mm mounting holes. The most complex and diverse GQ series – several buttons that are normally open are all 2A or 3A current.


Is the difference between the high current metal switch and other buttons only the current?

Generally speaking, it is indeed only the difference in current, but because the ability of technology research and development is not strong enough, most button switch manufacturers can produce high-current button switches but there are limitations.The function of the high-current button is not as rich as that of the conventional button. It still takes a certain amount of time and experience to develop a feature-rich high-current button.


Take our high current push button switch as an example:

The high-current series buttons are divided into two types: pin terminal and lead terminal.

Pin terminal support: 16mm, 19mm, 22mm.

Lead terminal type support: 16mm, 19mm, 22mm, 25mm, 30mm.

Due to the limited research and development technology of the buttons, their functions are somewhat different.


1. Different types of switch contacts

●16mm high current lead high curren button support: 1no;

19mm/22mm/25mm/30mm metal 10A high current lead supports: 2NO;

16mm/19mm high current pin terminal metal button switch support: 1no;

22mm Mounting hole 10a switch supports: 1no1nc.


2. Different waterproof levels

16mm/19mm/22mm/25mm/30mm high current lead type switch waterproof grade ip67;

16mm/19mm/22mm pin terminal type high current pushbutton waterproof grade ip65.

3. Differences in ratings

16mm lead wire high current rating 10A/250V;

19mm/22mm/25mm/30mm lead wire high current rating 10A/220V;

16mm, 19mm pin type high current rating 10A/AC250V;

22mm pin type high current two-color 10A/6-48V wide voltage;

22mm pin type high current monochrome 10A/6-48V or 220V.


4. Support different color lamp beads

●22mm pin terminal type high current support single color, bi-color, tri-color;

16mm lead type high current supports single color and bi-color;

Other types of pushbutton switches can only support monochrome.


What types of heads are there?

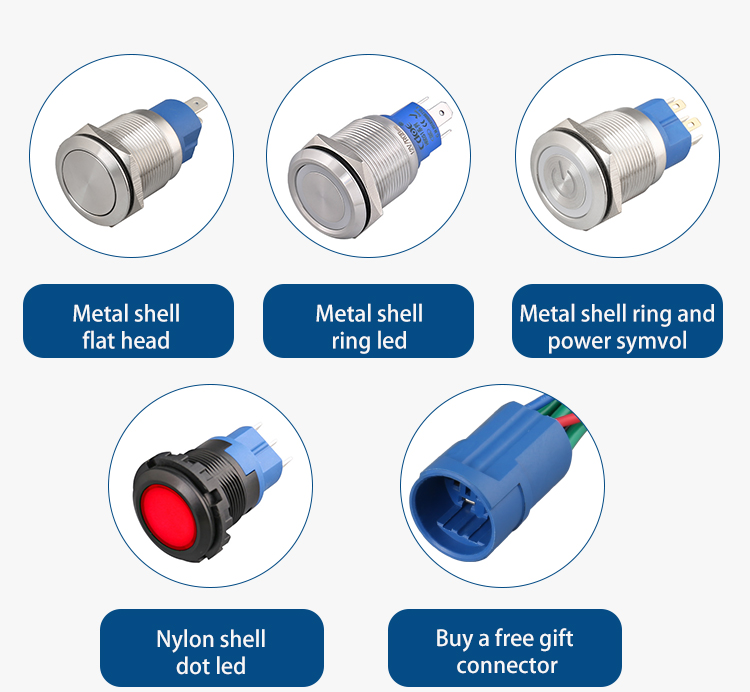

●Flat head,ring led,ring power and Plastic material will have alarge surface glow head type.

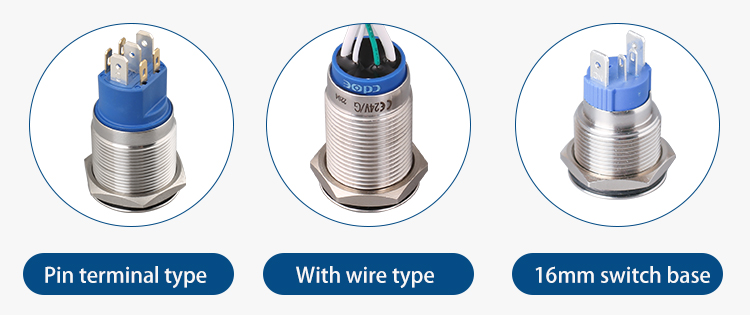

Switch bottom type display:

Pin terminal and with wire
