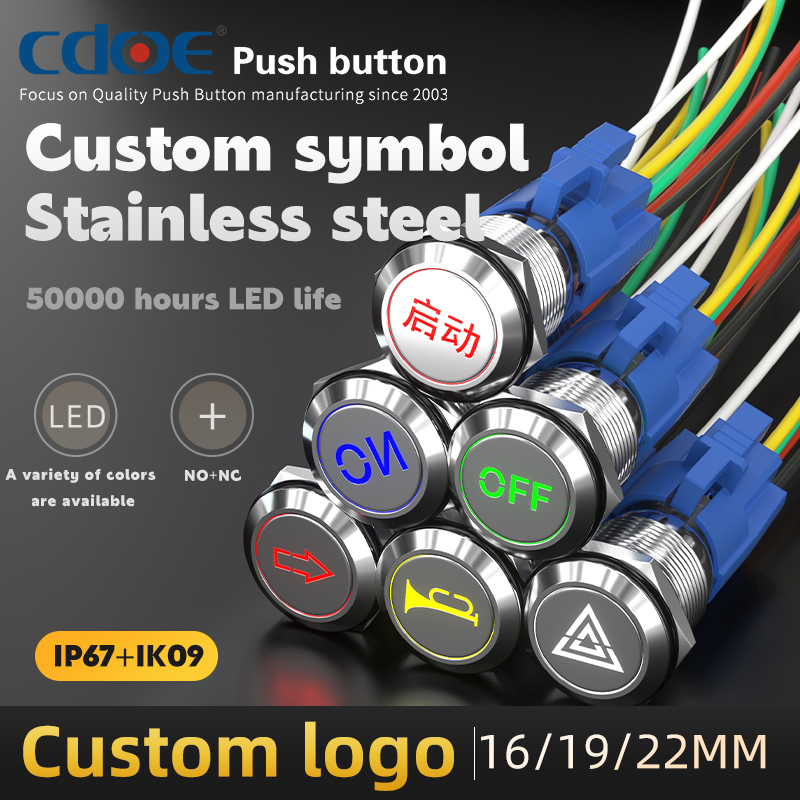

19MM custom laser logo design waterproof ip67 blue led momentary push button switch for car
▶ Push Button Switch For Car Product Description:
In the modern industrial landscape, the demand for push button switch for car applications is steadily rising. To meet this burgeoning need, we proudly introduce a versatile 19mm push button switch meticulously engineered for the specific demands of the automotive sector. This article aims to delve into the myriad features and applications of this product, spotlighting its pivotal role in automotive and industrial settings.
Product Features
1.19mm Mounting Hole: Crafted with a standardized 19mm mounting hole, this push button switch seamlessly integrates into the control panels of various automotive models, ensuring universal compatibility.

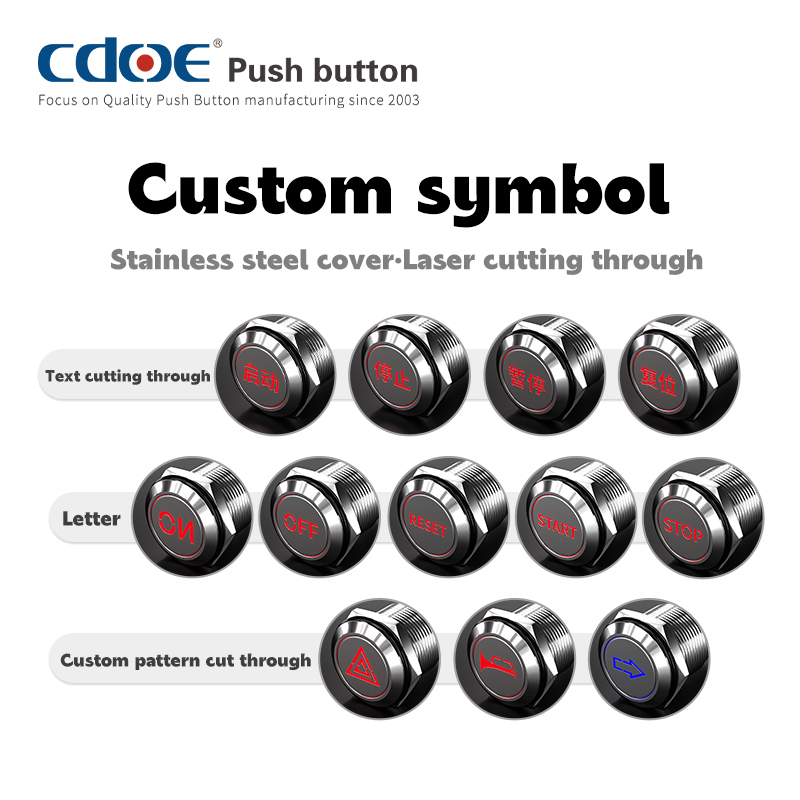

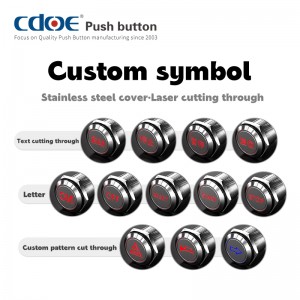

2.Customizable Horn Symbol: Tailoring to individual preferences, users have the freedom to customize the horn symbol on the button switch, enhancing visual recognition in diverse operational scenarios.
3.Circular Illuminated Head: Equipped with a circular illuminated head, this button switch offers heightened visibility even in low-light conditions, facilitating intuitive operation.
4.IP67 Waterproof Rating: Engineered to withstand harsh environmental conditions, the product boasts an IP67 waterproof rating, guaranteeing reliable performance and long-term durability.
5.Selectable Contact Types: Flexibility is paramount, and users can choose between 1NO1NC or 2NO2NC contact types to suit varying electrical connectivity requirements.
6.Maximum Rated Value of 5A, 250V: With a maximum rated value of 5A, 250V, this push button switch delivers robust electrical control capabilities, catering to the diverse needs of industrial applications.
Market Applications
1.Automotive Control Panels: Serving as a cornerstone of automotive control systems, this push button switch finds utility in a plethora of applications, including door controls, window operations, and lighting functionalities.
2.Industrial Machinery and Equipment: Within the realm of industrial machinery and equipment, this button switch serves as a dependable control interface for essential functions such as start, stop, and reset.
3.Marine and Aviation Devices: Embracing its waterproof attributes, the switch seamlessly integrates into the control panels of marine vessels and aviation instruments, ensuring optimal performance in demanding environments.
4.Electronic Device Control: Beyond traditional domains, this versatile switch extends its utility to various electronic devices, including gaming consoles and entertainment systems, accentuating its adaptability across industries.
Conclusion
In essence, the 19mm push button switch for car applications emerges as a quintessential component in modern industrial settings. Its waterproof design, customizable features, and robust performance underscore its indispensability across automotive and industrial domains, solidifying its status as a preferred choice for discerning professionals.
▶ Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ Series 19mm custom laser push button switch for car |
|
| Product model : | HBDS1-AGQ19F-□EC(Z)/J/S |
| Mounting hole size : | 19MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Stainless steel/PC; Switch button surface:Stainless steel/Nickel plated brass; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -40℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶ Problems encountered by buyers:
Q1: What is the product model of this 19MM LED momentary push button switch?
A1: The product model is HBDS1-AGQ19F-□EC(Z)/J/S.
Q2: What mounting hole size does this push button switch support?
A2: This push button switch supports a 19MM mounting hole size.
Q3: What is the switch value of this LED push button switch?
A3: The switch value is Ith:5A, UI:250V.
Q4: What operation types are available for this push button switch?
A4: This push button switch supports both momentary and latching operation types.
Q5: What contact configurations are available?
A5: The available contact configurations are 1NO1NC and 2NO2NC.
Q6: What waterproof rating does this LED momentary switch have?
A6: This LED momentary switch has an IP67 waterproof rating.
Q7: What LED colors are available for this switch?
A7: The available LED colors are red, green, yellow, orange, blue and white.
Q8: What rated voltages are available for the LED lamp?
A8: The available rated voltages are 6V, 12V, 24V, 36V, 110V and 220V.
Q9: Can the button symbol or logo be customized?
A9: Yes. The button supports custom laser logo design and customizable symbols, such as a horn symbol.
Q10: What engraving file formats are accepted?
A10: For a simple custom symbol pattern, a JPG picture can be provided. For complex patterns, PDF or AI format files can be sent.
Q11: What materials are used in this 19MM push button switch?
A11: The head is made of stainless steel and PC, the switch button surface is stainless steel or nickel plated brass, the pedestal is PBT, and the contact is silver alloy.
Q12: Where can this waterproof LED push button switch be used?
A12: It can be used in automotive control panels, industrial machinery and equipment, marine and aviation devices, electronic device control, elevators, charging piles, automation equipment, yachts, lathes, lifts and lawn mowers.
