Led indicator 8mm Ip67 Pin Terminal Red Flat Head Stainless Steel Signal Lamp
▶Product Description:

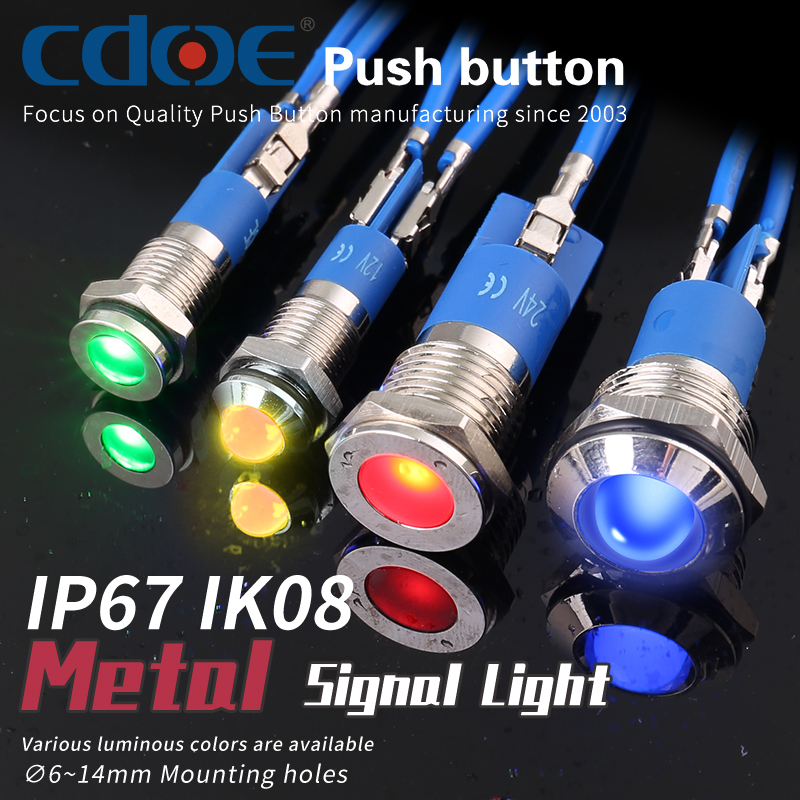

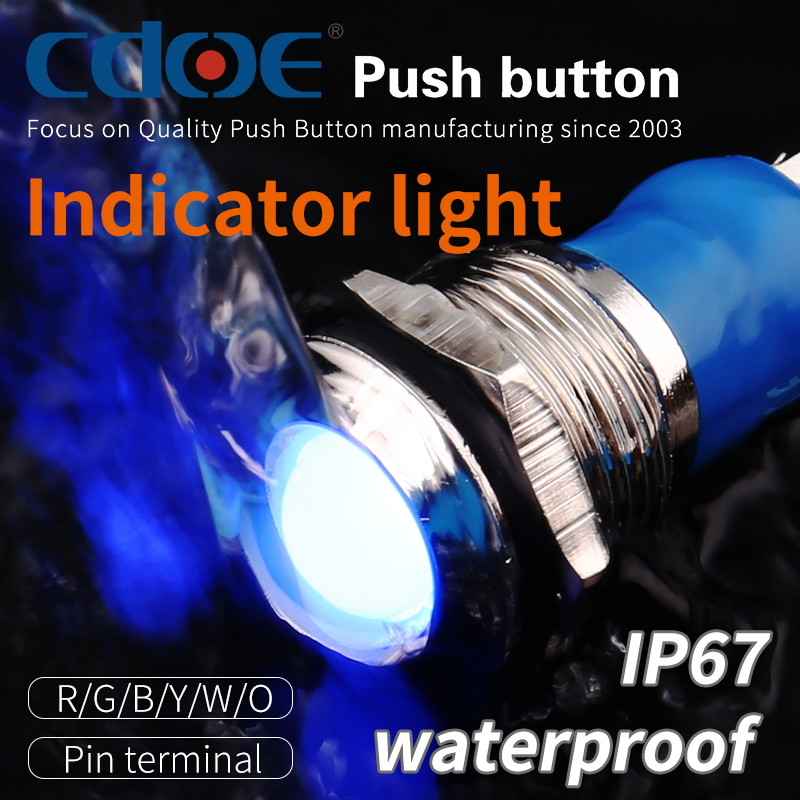

Metal flat head waterproof housing ip67 rating indicator lamp, Use bright lamp bead, can do a variety of lighting colors.Such as red, green, blue, orange, white, yellow.Support Bi-color and Tri-color customized lighting to meet different needs, silver-plated pins, wiring is more convenient and quick.8mm mounting hole, 30.55mm in total length, 0.8mm in total length of terminal, 0.3mm in width.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDGQ 8mm Metal signal lamp series flat head green led |
|
| Product model : | HBDGQ8T-D/J/S(N) |
| Mounting hole size : | 8mm |
| Appearance material: | Signal lamp surface:Stainless steel/Nickel plated brass; Pedestal: PBT |

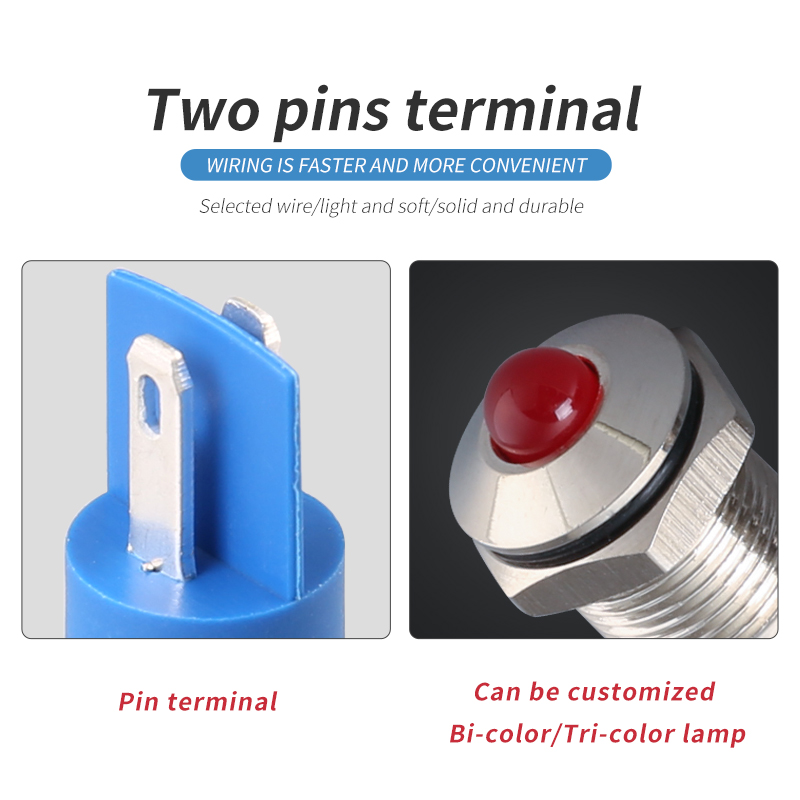

| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Lamp bead parameters | |
| Rated voltage : | 3V/6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Connection form: | Welding wire |
| Protection grade: | IP67 |
▶Problems Encountered By Buyers:

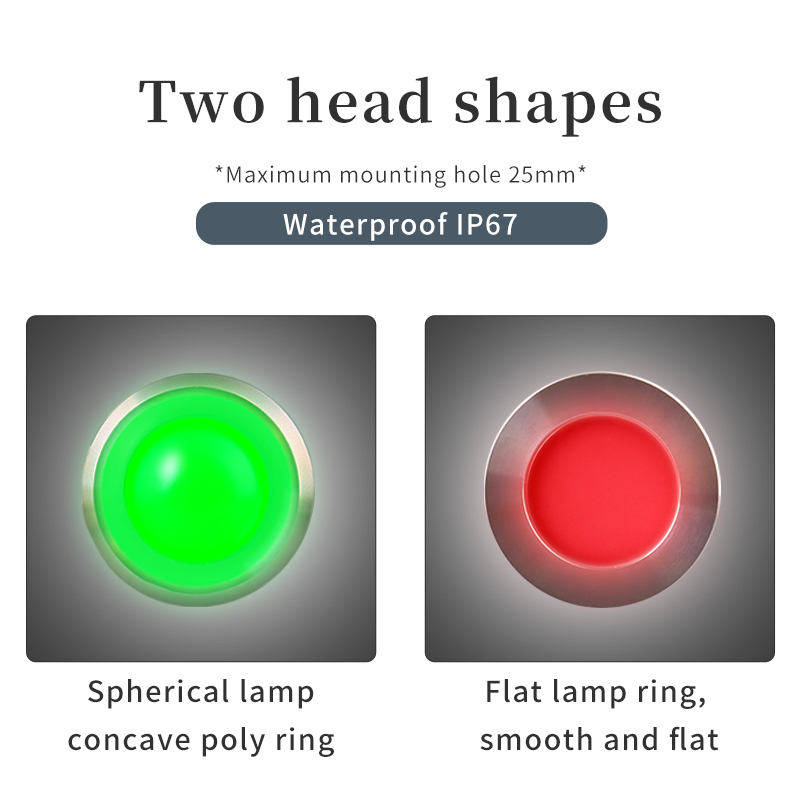

Q:What's the difference between the two heads?
A:“Spherical head: The lights are more concentrated and look better than flat lights;Flat head,:more uniform illumination, Visual effects are mediocre.
Q:Is it a polarized lamp bead signal light?
A:“NO,This metal indicator lamp is the default non-polarized lamp bead.”
Q:I want to know the length of the thread part of the metal signal lamp, I need to compare the thickness of the panel?
A:“OK,The thread length is approximately 14mm.”
Thank you for your trust and support!
continue to enhance, to be certain solution top quality in line with market and buyer standard requirements. Our corporation has a excellent assurance program are actually established for Led indicator 8mm Ip67 Pin Terminal Red Flat Head Stainless Steel Signal Lamp , The product will supply to all over the world, such as: Hungary , Bandung , Finland , Good quality and reasonable price have brought us stable customers and high reputation. Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. We will work whole-heartedly to improve our products and services. We also promise to work jointly with business partners to elevate our cooperation to a higher level and share success together. Warmly welcome you to visit our factory sincerely. -->
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
