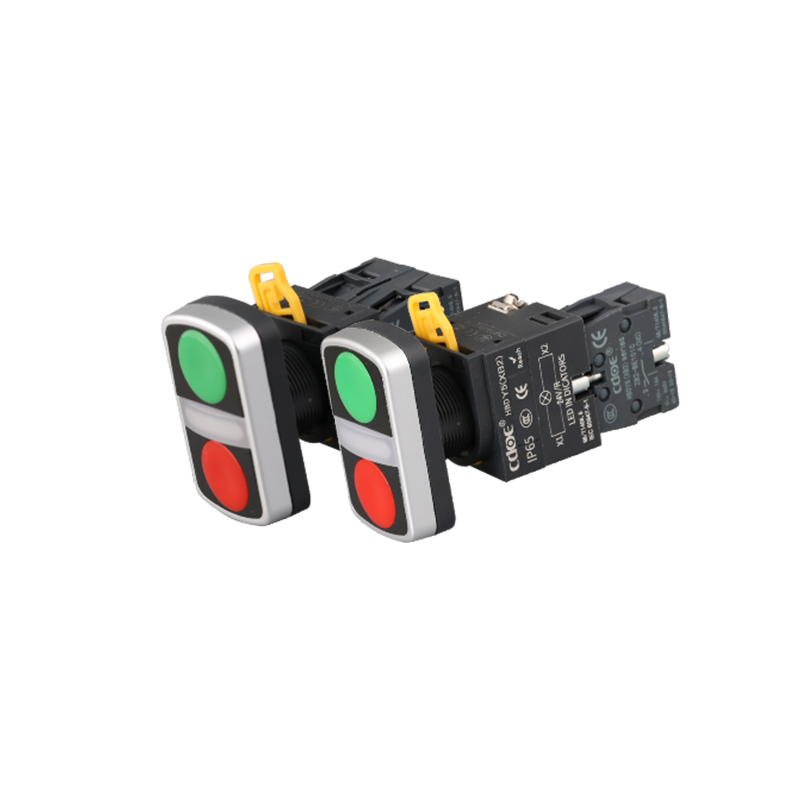

double push button xb2 y5 series plastic illuminated 22mm two button one Pilot Light product

▶Product Description:

This HBDY5-KW-11(D)S/RG series double-headed pushbutton provides you with a reliable industrial control interface. It uses a standard 22mm mounting hole diameter and is easy to integrate into your control panel or equipment.

The button head is made of durable plastic material, and the key surface is made of PC material, providing a comfortable operating feel and visual distinction. The internal contacts are made of silver alloy to ensure excellent conductivity and long-term reliability. The electrical rating is up to Ith:10A, UI:600V, meeting a variety of electrical connection needs.

HBDY5-KW-11(D)S/RG is a momentary operation button, which acts when pressed and resets when released. The contact configuration is flexible, and you can choose 1 normally open (1NO), 1 normally closed (1NC), 1 normally open 1 normally closed (1NO1NC) or 2 normally open 2 normally closed (2NO2NC) to adapt to different control logics. The product uses screw terminal connection to ensure that the wiring is firm and reliable, and it is convenient for on-site installation and maintenance.

This double-headed pushbutton is available in red or green head colors for easy identification and functional differentiation. It has an IP40 protection level, which can effectively prevent the entry of solid foreign objects larger than 1mm (such as tools or thick wires), ensuring reliability in daily industrial environments.
