Metal push button switches are switches that can be activated by pressing a metal button. They are widely used in various applications, such as industrial machines, electrical panels, vehicles, and more. Metal push button switches have different terminal forms, which are the parts that connect the switch to the circuit or the device. The terminal form of a metal push button switch affects its installation, performance, and durability. In this article, we will introduce the common terminal forms of metal push button switches, and help you choose the best one for your needs.

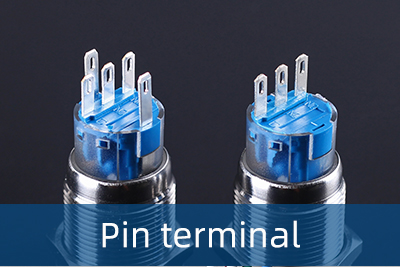

Pin terminals
Pin terminals are terminals that have metal pins that can be inserted into sockets or connectors. Pin terminals are easy to install and remove, and they can provide a secure and stable connection. Pin terminals are suitable for applications that require frequent plugging and unplugging, such as testing equipment, portable devices, or modular systems.
Advantages and disadvantages of pin terminals
Some of the advantages of pin terminals are:
- 1.They are easy to install and remove, and they do not require soldering or crimping.
- 2.They can provide a secure and stable connection, and they can prevent loose wires or short circuits.
- 3.They can support multiple wires or circuits with one terminal, and they can reduce the space and cost of wiring.
Some of the disadvantages of pin terminals are:
- 1.They can be affected by corrosion, oxidation, or dirt, which can reduce the conductivity and reliability of the connection.
- 2.They can be damaged by excessive force, vibration, or bending, which can cause the pins to break or deform.
- 3.They can have compatibility issues with different sockets or connectors, which can affect the performance and safety of the connection.

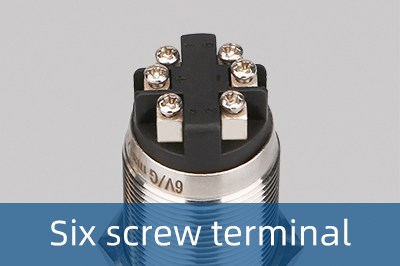

Screw terminals
Screw terminals are terminals that have metal screws that can be tightened or loosened to secure or release the wires. Screw terminals are simple and reliable, and they can provide a strong and durable connection. Screw terminals are suitable for applications that require high current or voltage, such as power supplies, motors, or heaters.
Advantages and disadvantages of screw terminals
Some of the advantages of screw terminals are:
- 1.They are simple and reliable, and they do not require special tools or skills to install or remove.
- 2.They can provide a strong and durable connection, and they can withstand high current or voltage.
- 3.They can support different types and sizes of wires, and they can adjust the tightness of the connection.
Some of the disadvantages of screw terminals are:
- 1.They can be time-consuming and labor-intensive to install or remove, and they can require regular maintenance and inspection.
- 2.They can cause damage or stress to the wires, which can affect the conductivity and lifespan of the wires.
- 3.They can have loose connections or poor contacts, which can cause overheating, sparks, or fire hazards.

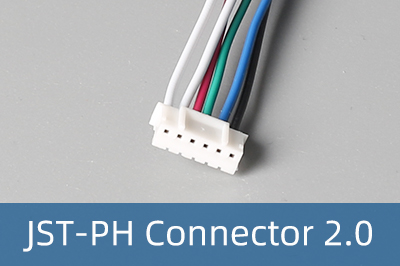

JST-PH wiring
JST-PH wiring is a type of wiring that uses JST-PH connectors, which are small and compact connectors that have a 2mm pitch. JST-PH wiring is convenient and versatile, and it can provide a neat and tidy connection. JST-PH wiring is suitable for applications that require low current or voltage, such as sensors, LED lights, or microcontrollers.
Advantages and disadvantages of JST-PH wiring
Some of the advantages of JST-PH wiring are:
- 1.They are convenient and versatile, and they can be plugged and unplugged easily.
- 2.They can provide a neat and tidy connection, and they can reduce the clutter and weight of wiring.
- 3.They can support multiple wires or circuits with one connector, and they can save the space and cost of wiring.
Some of the disadvantages of JST-PH wiring are:
- 1.They can be affected by corrosion, oxidation, or dirt, which can reduce the conductivity and reliability of the connection.
- 2.They can be damaged by excessive force, vibration, or bending, which can cause the pins to break or deform.
- 3.They can have compatibility issues with different sockets or connectors, which can affect the performance and safety of the connection.

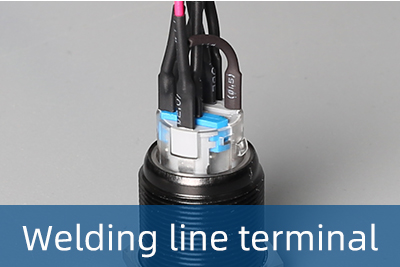

Welding wire
Welding wire is a type of wire that is welded to the terminal of the switch. Welding wire is permanent and secure, and it can provide a high-quality connection. Welding wire is suitable for applications that require high reliability and stability, such as medical equipment, military equipment, or aerospace equipment.
Advantages and disadvantages of welding wire
Some of the advantages of welding wire are:
- 1.They are permanent and secure, and they do not require any additional components or maintenance.
- 2.They can provide a high-quality connection, and they can improve the conductivity and efficiency of the connection.
- 3.They can support different types and sizes of wires, and they can create a seamless and smooth connection.
Some of the disadvantages of welding wire are:
- 1.They are difficult and irreversible, and they require special tools and skills to install or remove.
- 2.They can cause damage or stress to the wires, which can affect the conductivity and lifespan of the wires.
- 3.They can have poor flexibility or adaptability, which can limit the design and function of the connection.

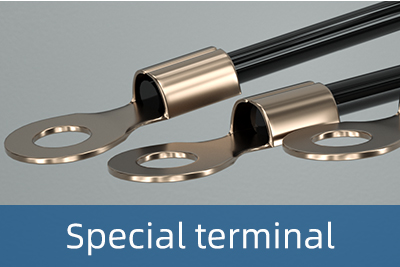

Other special terminals
Other special terminals are terminals that have customized or unique forms, such as spring terminals, crimp terminals, solder terminals, or quick-connect terminals. Other special terminals are flexible and diverse, and they can provide different solutions for different needs. Other special terminals are suitable for applications that require specific or special features, such as waterproof, dustproof, anti-vibration, or anti-interference.
Advantages and disadvantages of other special terminals
Some of the advantages of other special terminals are:
- 1.They are flexible and diverse, and they can provide different solutions for different needs.
- 2.They can provide specific or special features, such as waterproof, dustproof, anti-vibration, or anti-interference.
- 3.They can enhance the performance and functionality of the connection, and they can meet the standards and requirements of the application.
Some of the disadvantages of other special terminals are:
- 1.They can be complex and expensive, and they may require additional components or maintenance.
- 2.They can have compatibility issues with different wires or devices, which can affect the performance and safety of the connection.
- 3.They can have limited availability or supply, which can affect the delivery and service of the connection.
How to choose the best terminal form for your metal push button switch?
The choice of the terminal form for your metal push button switch depends on your application and your preferences. You should consider the following factors before making a decision:
- 1.The current and voltage of the circuit or the device that you want to connect to the switch.
- 2.The frequency and duration of the switching operation that you want to perform with the switch.
- 3.The environment and condition that the switch and the connection will be exposed to, such as temperature, humidity, dust, vibration, or interference.
- 4.The ease and convenience of the installation and removal of the switch and the connection.
- 5.The cost and availability of the terminal form and the corresponding wires and connectors.
In general, pin terminals are more suitable for applications that require frequent plugging and unplugging, screw terminals are more suitable for applications that require high current or voltage, JST-PH wiring is more suitable for applications that require low current or voltage, welding wire is more suitable for applications that require high reliability and stability, and other special terminals are more suitable for applications that require specific or special features.
